Azure DevOps Integration with GitKraken Desktop

Last updated: February 2026

GitKraken lets you connect to Azure DevOps (formerly VSTS), making it easier to find and manage repositories when cloning, working with remotes, or handling pull requests.

Quick Start

Connect GitKraken Desktop to Azure DevOps to clone repositories, manage remotes, and create pull requests from your Azure DevOps account.

1. Go to Preferences > Integrations in GitKraken Desktop.
2. Select Azure DevOps and click Connect to Azure DevOps.
3. Log in with your Azure DevOps credentials in the browser window that opens.

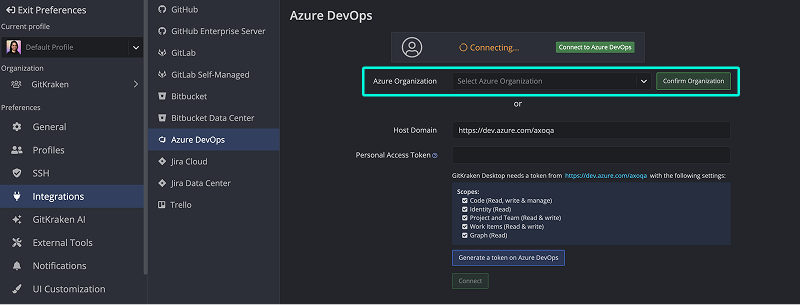

4. Select Open GitKraken and choose your organization.

If OAuth is not available (e.g., your organization has disabled third-party access), use a Personal Access Token (PAT) instead:

1. In Preferences > Integrations, enter your host domain.
2. Click Generate a token on Azure DevOps to open the token creation page.
3. Copy the token and paste it into GitKraken, then click Connect.

After connecting, GitKraken Desktop can browse your Azure DevOps repositories when cloning, display fork options when adding remotes, and show pull request details. To use SSH, go to Preferences > Integrations, click Generate SSH key and copy to clipboard, and add it to your Azure DevOps SSH settings.

Benefits

• Create new repositories on your Azure DevOps account with optional .gitignore and license files.
• Automatically generate and copy an SSH key to Azure DevOps.
• Clone directly from your Azure DevOps repository list.
• Identify Azure DevOps repositories by remote avatars on the Commit Graph.
• Add remotes for Azure DevOps repositories.
• Create and view pull requests, including the ability to add reviewers.

Azure DevOps Authentication

To authenticate with Azure DevOps:

1. Open Preferences > Integrations in the top-right corner.

2. Choose Azure DevOps and click Connect to Azure DevOps.

4. In the browser window that opens, log in with your Azure DevOps credentials. Once successful, select Open GitKraken and choose your organization.

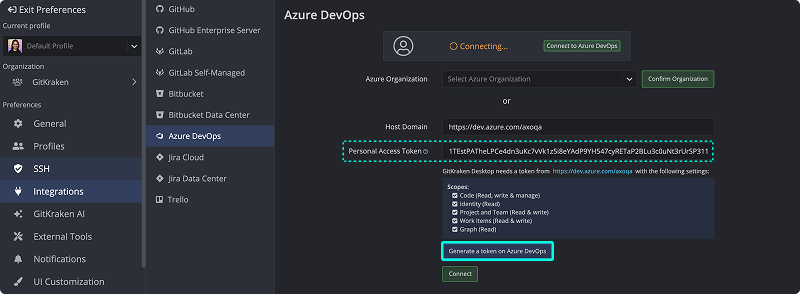

You can also connect using a Personal Access Token (PAT):

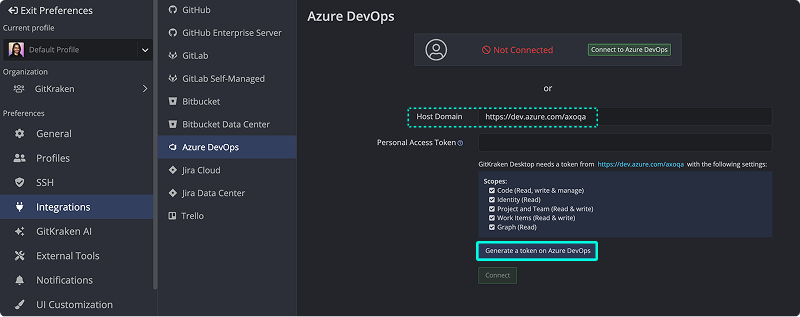

• Enter your host domain and click the Generate a token on Azure DevOps button.

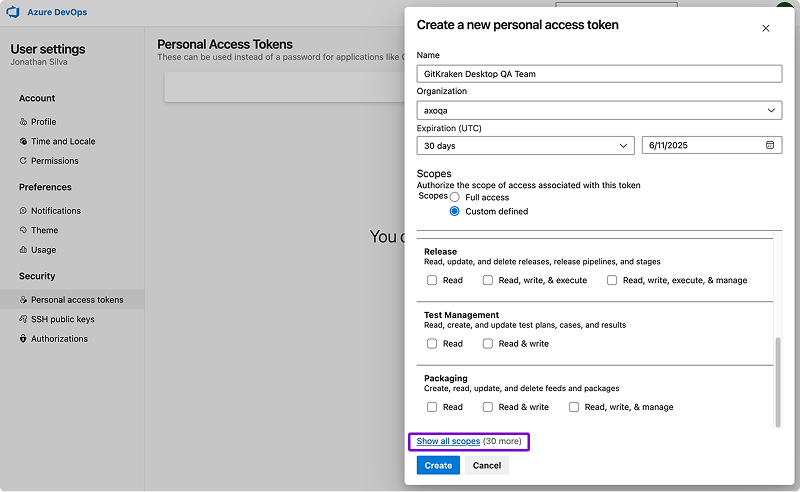

• Log in to Azure DevOps and generate a token.

• Copy the token (you’ll only see it once) and paste it into GitKraken, then click Connect.

Generating an SSH Key for Azure DevOps

GitKraken uses your default SSH configuration from Preferences > SSH unless you configure a specific key for Azure DevOps or enable your system SSH agent.

Once connected, you can generate a new SSH key:

• Click Generate SSH key and copy to clipboard.
• Paste the key into your Azure DevOps SSH settings.

OAuth Integration with Azure DevOps

When authenticated, GitKraken enables:

• Browsing your Azure DevOps repositories while cloning:

• Viewing fork options when adding remotes:

Manual URL entry is still available.

Connecting to Multiple Azure DevOps Accounts

GitKraken supports one Azure DevOps account per profile. With a paid Pro, Teams, or Enterprise plan, use multiple profiles to switch between accounts.

Requirement for Connecting to Azure DevOps Using OAuth

To connect via OAuth, Azure DevOps must allow third-party applications:

• Navigate to Organization Settings > Policies in Azure DevOps.
• Enable Third-party application access via OAuth.

For details, refer to Microsoft documentation: Change application connection & security policies for your organization.

If this setting cannot be enabled, you can connect using a Personal Access Token (PAT) instead.

Troubleshooting

Azure DevOps Pull Request Form Not Showing in GitKraken

If your Azure DevOps pull request does not appear in GitKraken:

1. In the Left Panel, right-click the remote (typically origin) and select Edit.
2. Make sure the URL matches the domain used for your integration:
   • If using a PAT: should match the Host Domain URL from Preferences > Integrations.
   • If using OAuth: should match the connected domain.
3. The correct format is: dev.azure.com/[organization]
4. Avoid using the deprecated VSTS format: [organization].visualstudio.com
5. Click Edit Remote to save changes.
